SMC combined 54 years of design and manufacturing knowledge with an uncompromising program of innovation, prototyping and user feedback to create our new Apex Swivel Pulley. The result is a pulley with unmatched security and deceptively simple ease of use.
Key features:
• Ergonomic triple-action lock can be easily opened with one hand
• Low-profile locking mechanism provides best-in-class security against accidental openings
• Symmetrical prusik-minding side plates reduce the possibility of mis- rigging progress capture systems

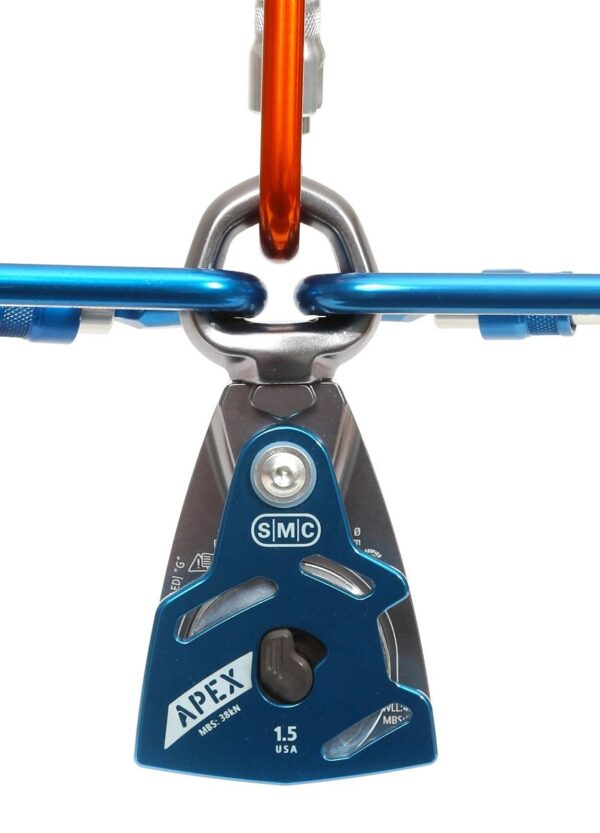

• Smooth sculpted, cold-forged swivel is soft goods compatible and can accommodate up to three carabiners
• Swinging side plate and wide opening enables hassle-free mid-line at- tachment
• Sealed ball bearings provide exceptional efficiency
• NFPA rated
• Made in the USA
| Weight | 0.675 lbs |
|---|---|
| Dimensions | 5.8” x 2.9” |
| WLL | 9.4kN |
| MBS | 38 kN (8542 lbf) |
| Rope Diameter | up to 13mm |
| Material | Aluminum, Stainless Steel |
| Sheave Major Diameter | 2.0” |
| Sheave Tread Diameter | 1.5” |
