LokHead Winch Fire/Rescue Kit (NFPA)
$3,938.20
Maximum line Ø (mm) 12.7 mm
Maximum working load for goods/equipment (kN) 4.9 kN
Maximum working load for human suspension (kN) 2.2 kN
The winch kit meets NFPA 2500 (1983), 2022 Edition “T”.

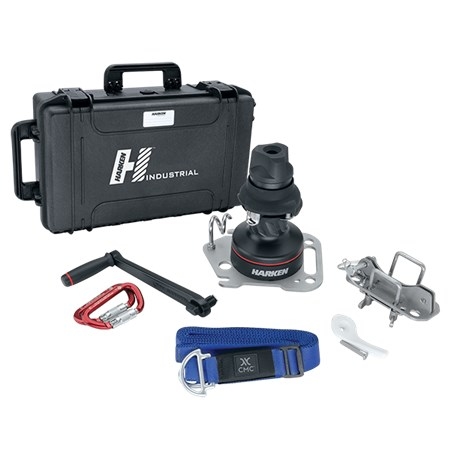

The innovative LokHead Winch Fire/Rescue Kit meets the certification requirements of the National Fire Protection Association Standard on Life Safety Rope and Equipment for Emergency Services NFPA 2500 (1983), 2022 Edition “T” . The winch is a portable or fix-mounted load-lifting, personal-hoisting winch used with an unlimited length of fiber rope. The captive head allows the winch to be used safely, and keeps the rope from accidentally releasing. Perfect for fixed or temporary applications and rescue. Harken Safety & Rescue offers the LokHead and its accessories fully boxed in a heavy-duty storage case that allows safe transport and rapid deployment. The kit includes the LokHead winch with reversible plate, waterproof carrying case, winch handle, tripod adapter with counter plate, control lever, CMC Variable Anchor strap, and two CMC ProSeries carabiners. The strap and carabiners also meet NFPA standards. Spare parts available from any Harken Safety & Rescue dealer. The winch’s simple construction requires no lubrication and can be flushed clean with fresh water.
| Weight (lb) | 32 lb |
| Maximum line Ø (mm) | 12.7 mm |
| Maximum line Ø (in) | 1/2 in |
| Minimum line Ø (mm) | 10 mm |
| Minimum line Ø (in) | 3/8 in |
| Weight (kg) | 14.5 kg |
| Weight of winch (lb) | 14.2 lb |
| Weight of winch (kg) | 6.4 kg |
| Maximum working load for goods/equipment (kN) | 4.9 kN |
| Maximum working load for goods/equipment (kg) | 500 kg |
| Maximum working load for goods/equipment (lb) | 1102 lb |
| Maximum working load for human suspension (kN) | 2.2 kN |
| Maximum working load for human suspension (kg) | 220 kg |
| Maximum working load for human suspension (lb) | 485 lb |
| Power ratio with 254 mm/10″ winch handle | 13.5:1/39.9:1 |
| Weight | 32 kg |
|---|
Brand
Harken
