TerrAdaptor Tripod System
The TerrAdaptor™ Tripod System is a modular and versatile high-directional anchor system designed for rescue and rope access operations. Its unique design allows configuration as a monopod, bipod, tripod, or quadpod (with additional Quadpod Attachment Kit), adapting to various scenarios including confined spaces, edge transitions, and uneven terrain.
Key Features:
-
Modular Configurations: Easily transitions between monopod, bipod, tripod, and quadpod setups to suit diverse operational needs.
-
Adjustable Height: Standard setup reaches approximately 10 ft (3 m); optional leg extensions (~4 ft) available for increased height.
-
Certified Strength: Minimum Breaking Strength (MBS) of 36 kN (8,093 lbf) in standard tripod configuration.
-

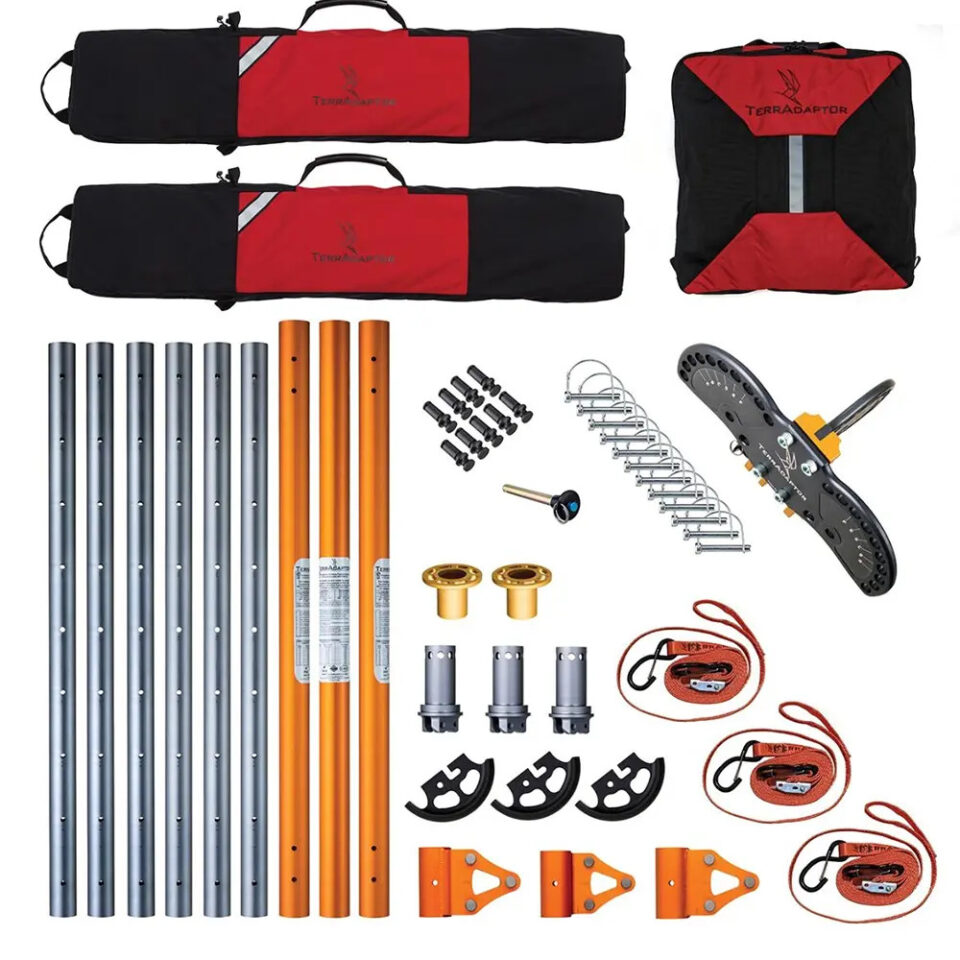

Comprehensive Kit Includes:
-
TerrAdaptor™ Tripod Head
-
2 Offset Leg Clamps with 3 Load Locking Pins each
-
Center Leg Clamp with 3 Load Locking Pins
-
Main Attachment Pin
-
3 Leg Kits complete with Modular Adaptor and Rocker Foot
-
3 Rope Hobble Sections
-
Cotter Pin Kit
-
Leg Coupling Pin
-
2 Lash Rings with 1 Coupling Pin each
-
TerrAdaptor™ Head/Accessory Bag
-
2 TerrAdaptor™ Leg Bags
-
TerrAdaptor™ User Guide
-
Specifications:
Specification | Detail |
---|---|
Weight | 90 lbs (40.8 kg) |
Height | Up to 10 ft (3 m) |
MBS | 36 kN (8,093 lbf) |
Certifications | NFPA 1983 (2017 Edition), CE EN 795:2012 Type B |
Made in | USA |
Ideal Applications:
-
Confined Space Rescue: Provides a reliable anchor point in restricted environments.
-
Rope Access Work: Suitable for technicians requiring adaptable anchoring solutions.
-
Industrial Maintenance: Assists in operations where traditional anchoring is challenging.
-
Wilderness Rescue: Offers stability and versatility in uneven and unpredictable terrains.
