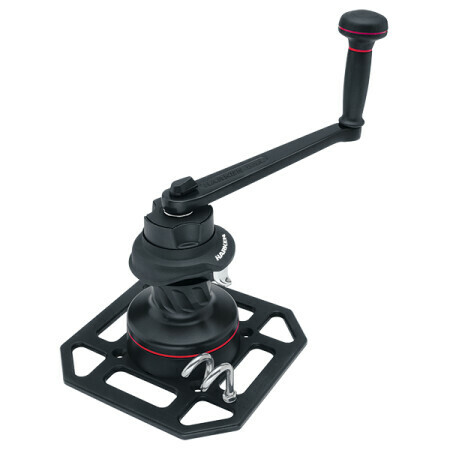

TopCrank Lokhead Rigging Winch 500 for Complex Lifting Systems
The TopCrank Lokhead Rigging Winch 500 is engineered for demanding rigging operations. Lightweight, CE certified, and field-ready, it features a robust adapter and rigging plate, allowing for secure and versatile mounting across a variety of complex setups.
Designed for precision and safety, the winch offers two-speed operation for controlled lifts and features a Lokhead self-tailing (LH) braking system that protects against material free-fall or accidental line release.
Ideal for remote, high-stakes environments, this winch system delivers reliable load handling without compromise.
Key Features:
-
CE certified for professional use
-
Dual-speed control: 13.5:1 and 39.9:1 gear ratios
-
Self-tailing LH braking system for safety
-
Multiple mounting options (adapter/rigging plate included)
-
Made with Radial Winch 40.2STA and aluminum jaws
-
Anodized aluminum plate for corrosion resistance
Technical Specifications:
Specification | Metric | Imperial |
---|---|---|
Total Weight (kit) | 10.3 kg | 22.7 lb |
Winch Weight | 7 kg | – |
Line Diameter Range | 9–12.7 mm | 3/8–1/2 in |
Max Load (equipment) | 5 kN | 500 kg |
Power Ratio (10” handle) | 13.5:1 / 39.9:1 | – |
Ideal For:
-
Remote rigging sites
-
Construction and rescue operations
-
Industrial lifting and haul systems
-
Temporary and permanent rigging setups
