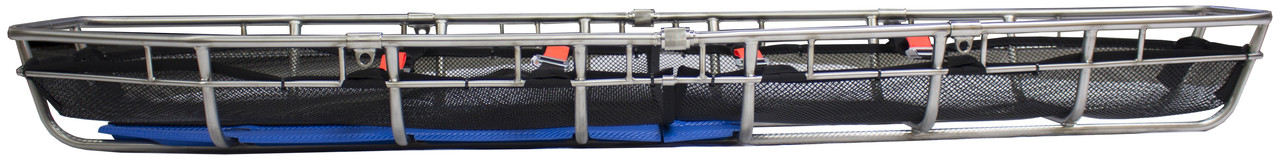

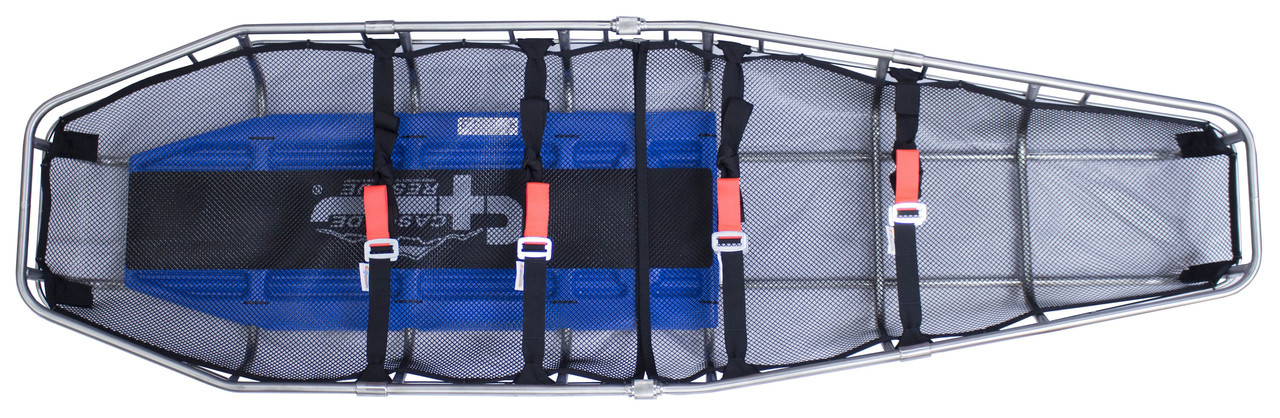

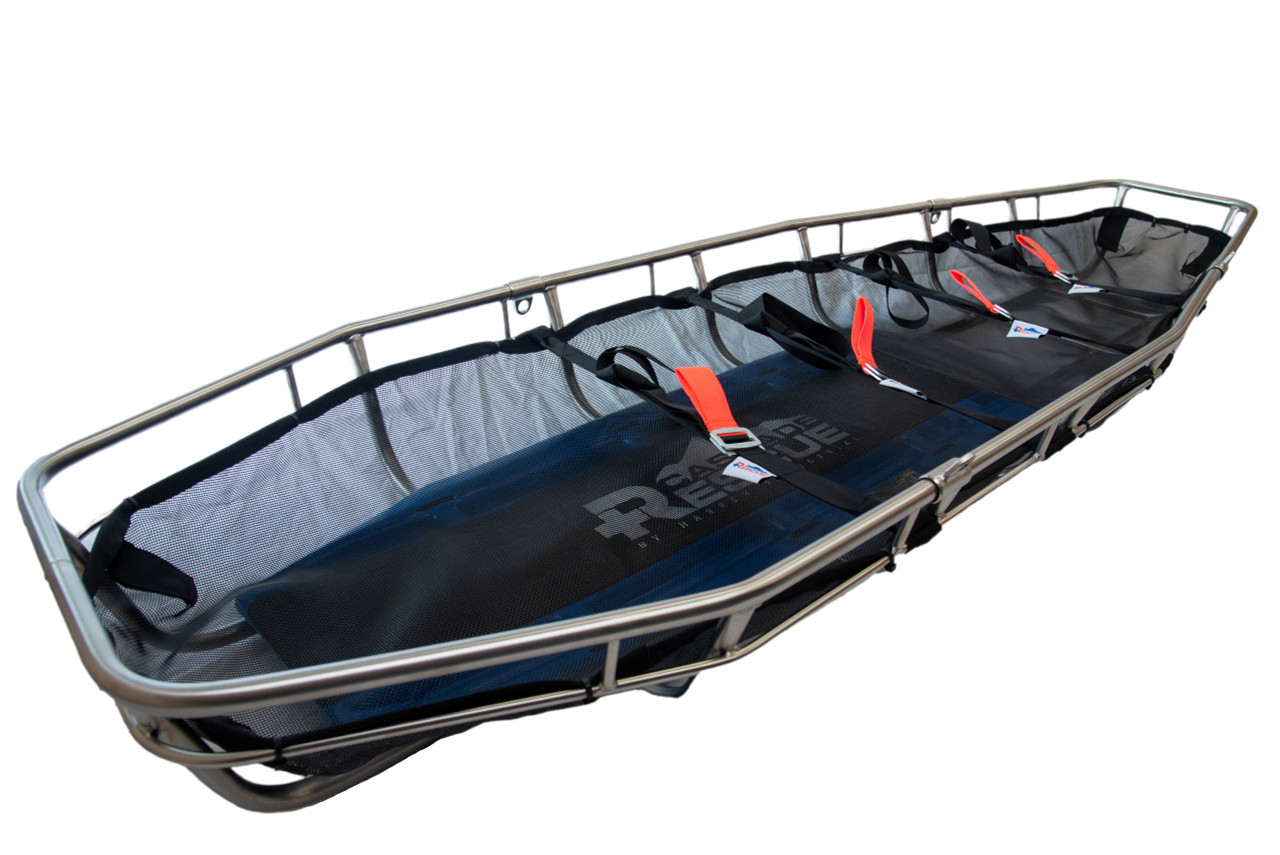

The Cascade Rescue Professional Series Stainless Steel Rescue Litter is engineered for optimal performance in challenging rescue scenarios. Constructed with a 3/4″ tubular stainless steel frame and 3/8″ supporting cross members, this litter offers exceptional durability and corrosion resistance. Its design includes four Patented Articulating Lift Points (ALPs) for versatile rigging options, making it suitable for both horizontal and vertical lifts.
Key Features:
-
Robust Construction: 3/4″ tubular stainless steel frame with 3/8″ cross members, powder-coated for enhanced durability.
-

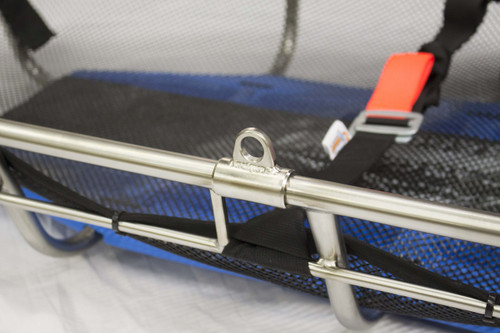

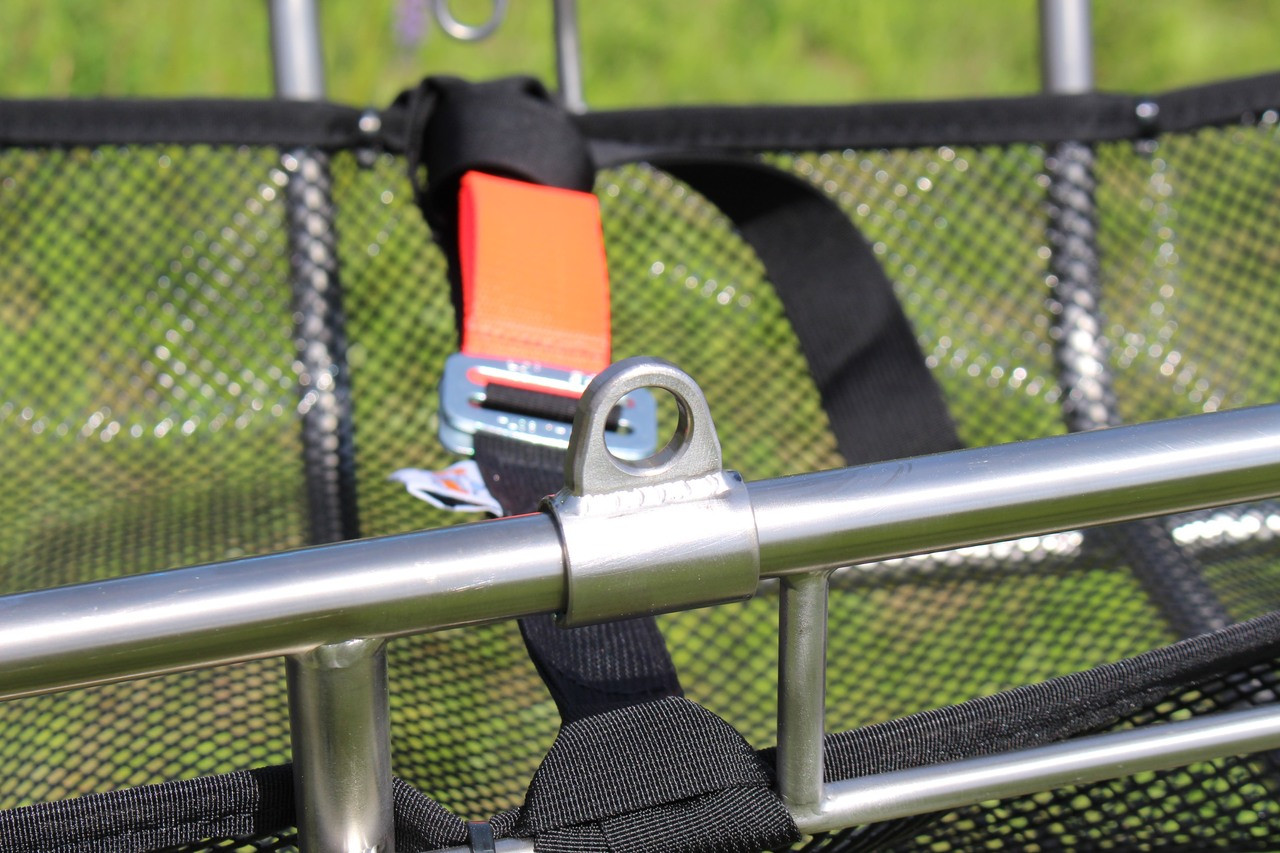

Articulating Lift Points (ALPs): Four patented ALPs allow for flexible rigging configurations.
-
Patient Comfort: Integral padded back support and UV-resistant polyethylene mesh liner ensure patient safety and comfort.
-
Quick Tab Straps: Four Quick Tab patient restraint straps for secure immobilization.
-

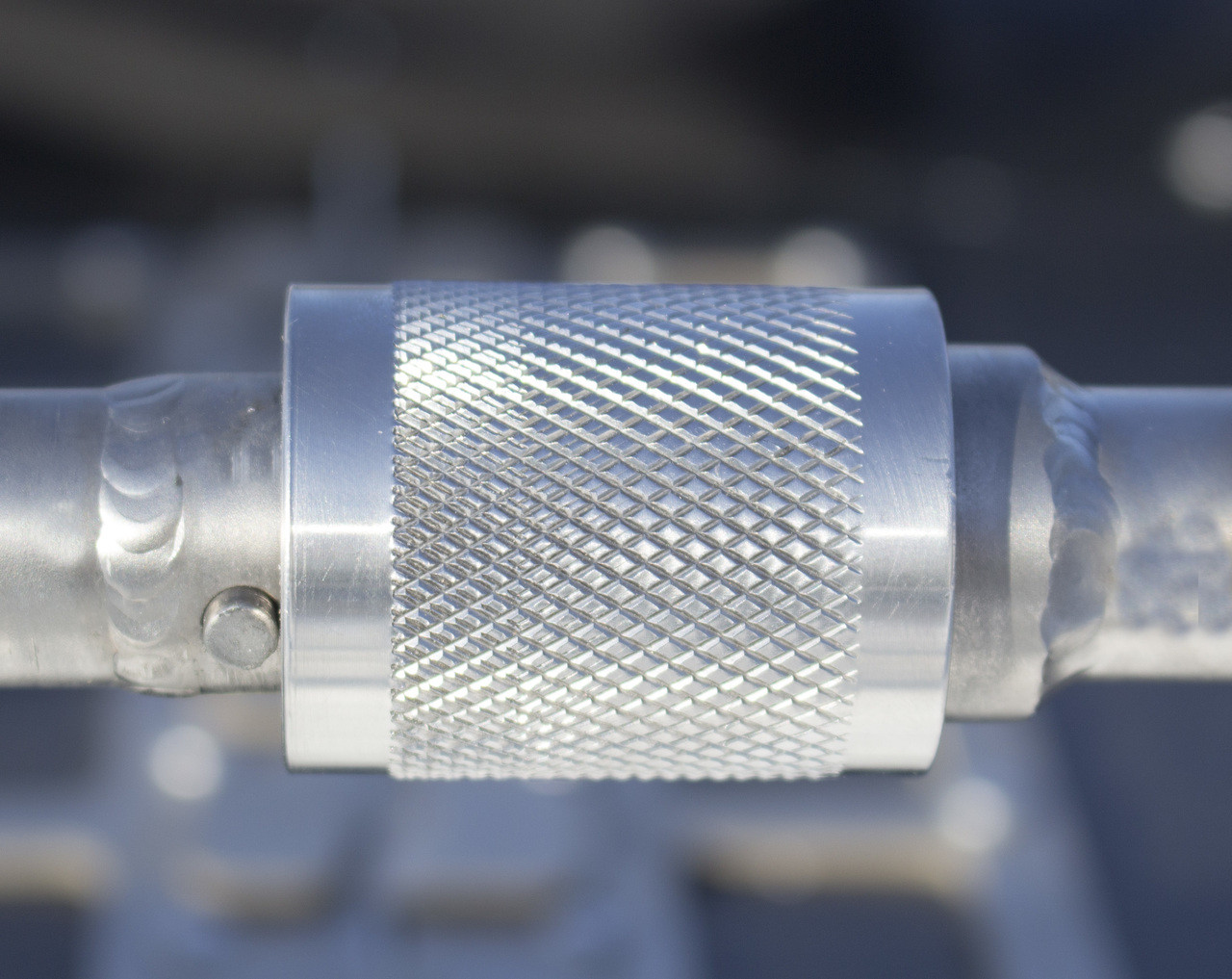

FastLock System: Two-piece models feature the FastLock System for rapid 10-second assembly/disassembly.
-
Versatile Design: Available in tapered or rectangular shapes, and one or two-piece configurations.
Specifications:
Specification | Detail |
---|---|
Length | 83 inches (211 cm) |
Width | 25 inches (64 cm) |
Height | 8 inches (20 cm) |
Internal Depth | 6.5 inches (16.5 cm) |
Weight (1-piece) | 25.5 lbs (11.5 kg) |
Weight (2-piece) | 27.5 lbs (12.5 kg) |
Load Rating | 2,500 lbs (11.12 kN) |
Material | Stainless steel frame with powder coating |
Certifications | NFPA 1983 (2017 Edition) compliant |
Ideal Applications:
-
Search and Rescue Operations: Designed for efficient patient transport in challenging terrains.
-
Emergency Medical Services: Provides reliable support for patient movement in various environmental conditions.
-
Wilderness and Remote Rescues: Suitable for operations in areas with limited accessibility.
